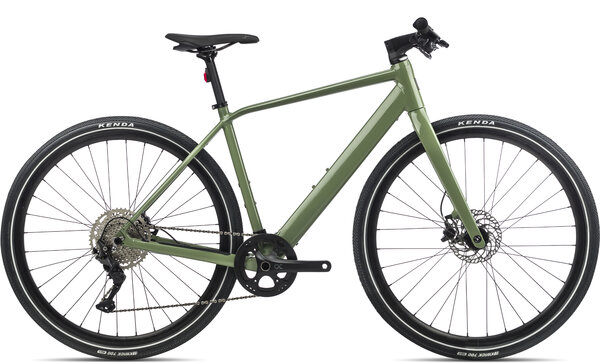

Orbea VIBE H30

Orbea VIBE H30
  • Color: Urban Green Gloss
  • Color: Blue Gloss
  • Color: Metallic Dark Red Gloss
  • Color: Night Black Gloss
Please select options


In the spirit of urban function and easy use, we have developed a new transportation concept designed for your life. A machine that is also a sophisticated accessory that echoes your sense of style without overshadowing it—a sleek, fun, reliable tool that can be easily maneuvered into apartments or workplaces.

Vibe is a bike that is lightweight and enjoyable to ride—with a motor, battery, and integrated electronics system designed for the fast-paced, grab-and-go lifestyle of the city.

- It's like magic—Fully integrated lighting is just one more feature to enhance your ride. Vibe is safer and more functional with head and tail lamps that announce your presence day and night. With full-time running lights and an optional high-beam light, Vibe is ready for the road.

- Vibe's control center is an attractive and discreet handlebar-mounted switch, putting function at your fingertips without removing your hands from the bar.
- On, off, and light control
- Battery & assist level
- Information by RBG LED
- Smart & compact

- The battery is one of the most noticeable components of an eBike system, so every step has been taken to find the lightest, smallest, and most discreet unit. Vibe's Enough Energy concept provides you enough battery power, not more. It eliminates the need for a bulky, high-output battery that needs to be removed from the bike.

- Vibe's smooth and balanced assist requires an advanced sensor. Blending perfectly with our effort to create a sleek and discrete system, the cassette lock ring is replaced with a PAS sensor that monitors your pedaling input and adjusts power accordingly.
- 40 pulses per second
- Magnetized lock ring sensor
- Proprietary algorithm & electronics

- Internal Cable Routing is carefully guided along the best path under the stem and through the head tube with no rub or rattle and is optimized for both traditional and electronic shifting systems. Proprietary headset spacers smooth airflow and offer easy adjustment.


Frame Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x40 maximum tire, 1-1/2" semi headset, 41x86.5 Pressfit BB, carrier, and fender compatible
Fork Orbea Vibe carbon fork, full carbon, 1-1/2", 700x40 maximum tire, flat mount disc mount, Thru-Axle12x100mm, Long fender compatible
Wheels Ready GR
Tires Kenda K1052 700x45C Reflective type+puncture protection
Crankset OC 42T, w/ Chainguard
Shifters Shimano Deore M4100
Rear Derailleur Shimano Deore M5120 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M4100 11-46t 10-Speed
Chain KMC X10
Brakes Magura MT30 Hydraulic Disc Easy Route Connection
Handlebars Alloy 31.8mm 12mm RISE 700mm
Stem OC1 31.8mm interface -6º
Headset Acros Alloy 1-1/2" Internal Cable Routing
Seatpost OC 27.2 Offset 0, for integrated light
Saddle Selle Royal Lift 1215 URN 278x145mm
Pedals VP-537 Black
Accessories & Extras Rear Light: Lezyne FENDER STVZO seatpost mounting 11 lumens
Bell: Knog Oi Classic
Motor Ebikemotion X35 Plus 20mph
Battery Ebikemotion 36V/6.9A 248Wh ANT+
Controller/Display Ebikemotion iWoc TRIO
Charger Ebikemotion X35

* Subject to change without notice.

Part Numbers

Option UPC MPN
Urban Green Gloss / Small 08434446787089 L63546YI
Urban Green Gloss / Large 08434446787218 L63553YI
Urban Green Gloss / X-Large 08434446787294 L63558YI
Blue Gloss / Small 08434446787065 L63546YG
Blue Gloss / Medium 08434446787102 L63549YG
Blue Gloss / Large 08434446787171 L63553YG
Blue Gloss / X-Large 08434446787256 L63558YG
Metallic Dark Red Gloss / Small 08434446787072 L63546YH
Metallic Dark Red Gloss / Medium 08434446787119 L63549YH
Metallic Dark Red Gloss / Large 08434446787195 L63553YH
Metallic Dark Red Gloss / X-Large 08434446787270 L63558YH
Night Black Gloss / Small 08434446787058 L63546YF
Night Black Gloss / Medium 08434446787096 L63549YF
Night Black Gloss / Large 08434446787157 L63553YF
Night Black Gloss / X-Large 08434446787232 L63558YF
